상세 정보 |
|||
| 양극 유형: | 릴-트렌치 사전 조립형 MMO 선형 | 릴 옵션: | 목재(수출) / 철(반품) |
|---|---|---|---|
| 표준 길이: | 릴당 100m, 200m, 500m | 노동절감: | 현장 조립 대비 최대 40% |
| 내용물: | 양극, 케이블, 백필, 재킷, 스플라이스, 풀 로프 | 품질관리: | 공장 테스트, 배치 추적성 |
| 강조하다: | 릴에서 트렌치 MMO 애노드,사전 조립 된 직접 매장 CP,현장 노동 절감 안오드 시스템 |
||
제품 설명
Reel-to-Trench MMO Linear Anode — Direct Burial System
Stop assembling anodes in the field. Our factory preassembled reel-to-trench system delivers complete, tested MMO linear anodes on deployment reels — pull, lay, connect, and bury. Field labor is reduced to three simple steps.
What's On the Reel
Every reel contains a complete, ready-to-install anode system:
- MMO/Ti anode wire — factory tensioned, no kinks
- Copper conductor cable — pre-connected at all splice points
- Coke breeze backfill — uniformly packed and contained
- Synthetic jacket — factory-sewn, seam integrity guaranteed
- All splice connections — epoxy sealed and Helium Leak Tested
- Pull rope and deployment instructions
Cost Comparison
| Item | On-Site Assembly | Reel-to-Trench |
|---|---|---|
| Labor (per 100m) | 16-24 man-hours | 4-6 man-hours |
| Splice Quality | Field-dependent | Factory guaranteed |
| Backfill Uniformity | Variable | Mechanically controlled |
| Weather Dependency | High | Minimal |
| QC Documentation | Limited | Full batch traceability |

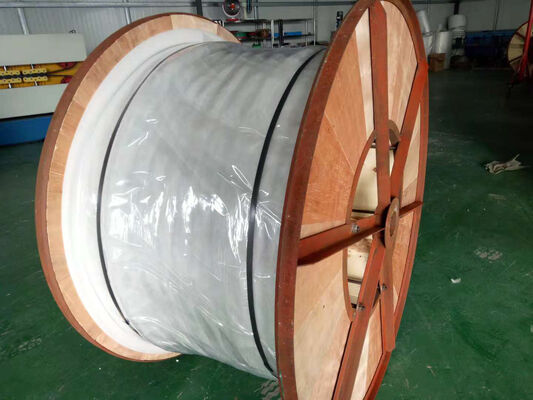

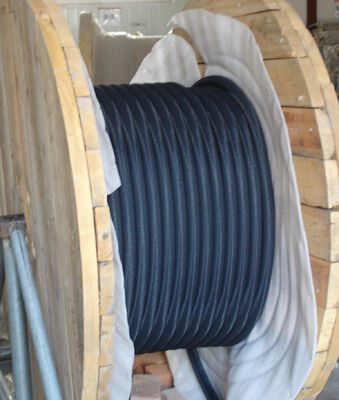

Reel Specifications
Available in wooden (export) or steel (returnable) configurations. Standard lengths: 100m, 200m, 500m per reel. Custom lengths available.
Applications
- Large-scale pipeline CP projects
- Remote locations with limited skilled labor
- Fast-track construction schedules
- Projects requiring full QC documentation
