상세 정보 |
|||
| 화학 성분: | Mg 알 Zn Mn | 재료: | 마그네슘 금속 |
|---|---|---|---|
| 모양: | 막대 막대 | 크기: | 60-150mm |
| 열처리: | T5 | 인장 강도: | 306MPa |
| 증거 스트레스: | 234Mpa | 연장: | 8% |
| 최대 직경: | 800mm | 최대 길이: | 8500 밀리미터 |
| 이트륨 함량: | 3.7-4.3% | 가돌리늄 함량: | 0-1.9% |
| 네오디뮴 함량: | 2.0-2.5% | 지르코늄 컨텐츠: | 0.4-1.0% |
| 생산 방법: | 열간롤, 주조, 압출 | ||
| 강조하다: | Customizable Size Magnesium Alloy Billet,Aerospace Application ZK60A T5 Billet,Helicopter Transmissions Magnesium Billet |
||
제품 설명

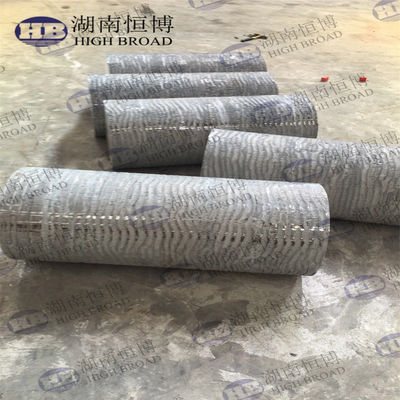

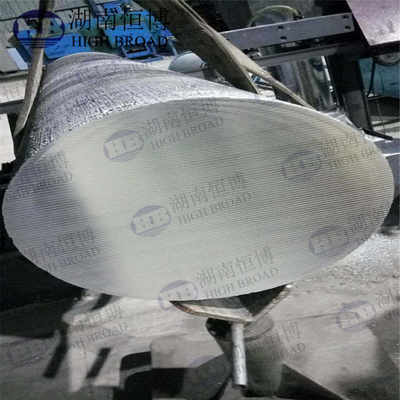

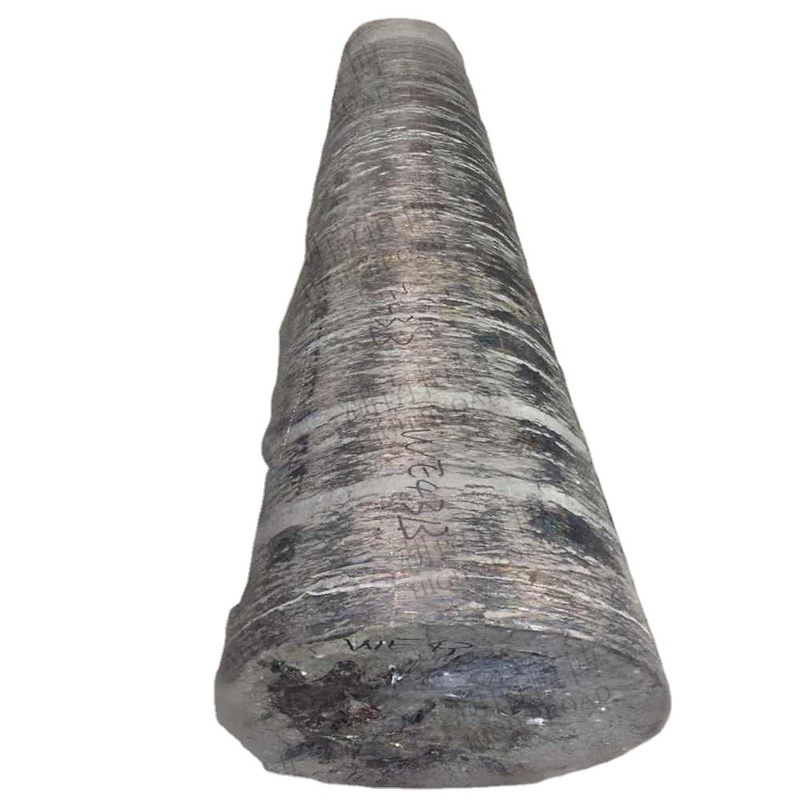

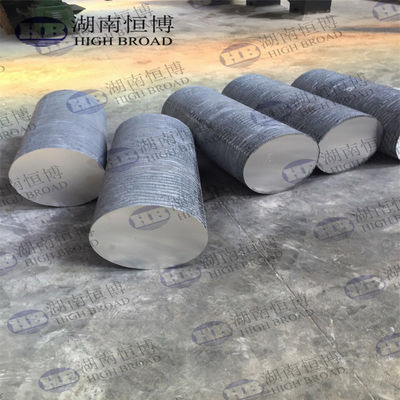

High-performance magnesium alloy billet ZK60A T5 designed for use in demanding environments including vibration, dust, corrosive conditions, and high temperatures.
- WE43
- WE54
- WE94
- Cast magnesium billets/bars
- Extruded magnesium billet/bars
- Rolling plate
- High strength magnesium alloys
Specially formulated for use in extreme conditions including vibration, dust, corrosive environments, and high temperatures up to 300°C (572°F).
WE series magnesium alloys (WE43, WE54, WE94) are magnesium-based alloys with Gadolinium, Yttrium, Zinc and Zirconium. These high strength casting alloys offer excellent mechanical properties and corrosion resistance for:
- Helicopter transmissions
- Power systems
- Aero-engines
- Sports cars
- Missiles
| Specification | Y | Gd | Nd | Zn | Zr |
|---|---|---|---|---|---|
| WE54 | 4.71-5.5 | 1.0-2.0 | 1.5-2.0 | - | 0.4-1.0 |
| WE43 | 3.7-4.3 | 0-1.9 | 2.0-2.5 | - | 0.4-1.0 |
| WE94 | 3.5-4.5 | 8.5-9.5 | - | 1-1.5 | 0.4-0.7 |
| Specification | Thermal Treatment Status | 0.25% Proof Stress (MPa) | Tensile Strength (MPa) | Elongation % |
|---|---|---|---|---|
| WE43 | T5 | 234 | 306 | 8 |
| WE54 | T5 | 205 | 280 | 4 |
| WE94 | T5 | 370 | 450 | 6 |
AZ80A, AZ91, AZ31B, ZM2, ZM3, ZM6, ZK60, MnE21
- Extruding
- Rolling
- Forging
- Complies with GB/T19078-2003 and ASTM standards
- Available shapes: round, D-shaped ingots, round bars, and plates
- Maximum dimensions: Diameter 800mm, Length 8500mm
On pallet
3-20 days after confirming order. Exact delivery date depends on production season and order quantity.
We have been producing various master alloys in China for over 10 years. Our product range includes:
- Magnesium master alloys
- Aluminum master alloys
- Rare earth alloys
- High performance Magnesium alloys
Our strong technical team can supply customized alloys according to customer requirements. Contact us for ICP machine test results and more information.
