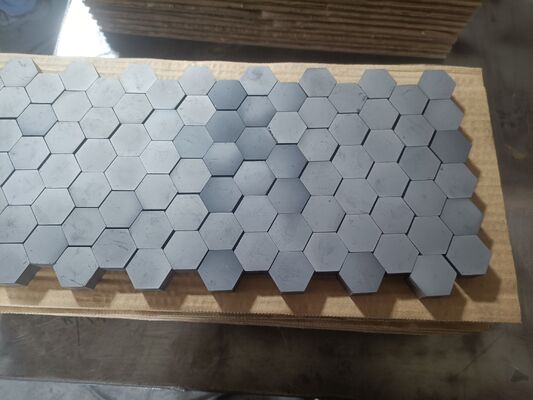

Lightweight SiC Ceramic Ballistic Protection Plate NIJ Level III Stand Alone 250x300mm Composite Armor Panel
제품 상세 정보:
| 원래 장소: | 중국 후난성 |
| 브랜드 이름: | High Broad |
| 인증: | ISO 9001:2015, NIJ 0101.06 Level III |
| 모델 번호: | 원문 타일 |
| 문서: | SIC Ballistic Armor Tiles-P...ad.pdf |
결제 및 배송 조건:
| 최소 주문 수량: | 1000개 |
|---|---|
| 가격: | USD 0.1-1/pieces |
| 포장 세부 사항: | 개별 PE 백 + EPE 폼 + 수출 등급 골판지 상자 |
| 배달 시간: | 재고 보유 기간은 영업일 기준 7~10일, 생산 기간은 20~30일 |
| 지불 조건: | T/T,L/C,웨스턴 유니온 |
| 공급 능력: | 달 당 10000 조각 |
|
상세 정보 |
|||
| 밀도: | 1.85~2.10g/cm³(총계) | 굴곡강도: | 380-450MPa(SiC층) |
|---|---|---|---|
| 타일 크기: | 250x300mm | 면적 밀도: | 26kg/m² 이하 |
| 파괴 인성: | 3.5~4.5MPa·m½(SiC층) | 두께: | 18.0mm(전체) |
| 강조하다: | Lightweight SiC Armor Plate,Stand Alone Ballistic Panel,NIJ III Ceramic Composite |
||
제품 설명
This lightweight hybrid composite panel combines pressureless sintered silicon carbide (SiC) ceramic strike face tiles with ultra-high molecular weight polyethylene (UHMWPE) backing. This design achieves NIJ Level III stand-alone protection at an areal density below 26 kg/m²—35-40% lighter than comparable all-alumina panels.
The SiC strike face provides exceptional hardness for threat disruption, while the PE backing absorbs residual kinetic energy through controlled delamination and fiber stretching.
- Stand Alone Protection - No additional backing required
- NIJ 0101.06 Level III Certified
- Ultra-Lightweight - 35-40% lighter than alumina alternatives
- Multi-Curve Ergonomic Design for improved comfort
- Edge-To-Edge Ceramic Coverage with minimal gaps
| Panel Type | Areal Density | Weight (250x300mm) | Weight Saving vs Al₂O₃ |
|---|---|---|---|
| SiC + PE Composite | ≤ 26 kg/m² | ~1.95 kg | 35% Lighter |
| Al₂O₃ + PE Composite | ~38 kg/m² | ~2.85 kg | Baseline |
| B₄C + PE Composite | ~22 kg/m² | ~1.65 kg | 15% Lighter but 2x Cost |
The ultra-hard SiC ceramic face (2500+ HV) fragments and erodes the impacting projectile, significantly reducing its penetrating capability. The UHMWPE backing then catches the fragmented core, absorbing residual energy through tensile fiber failure.
| Panel Size | 250 × 300 mm |
| Total Thickness | 18.0 mm |
| SiC Tile Size | 50 × 50 mm |
| Backing Material | UHMWPE |
| Areal Density | ≤ 26 kg/m² |
| Panel Weight | ~1.95 kg |
| Protection Level | NIJ Level III |
| Curvature | Single / Multi-Curve |
Each production batch undergoes rigorous ballistic testing per NIJ 0101.06 Level III standards. Test reports available upon request for qualified buyers.
Custom panel sizes and curvature available upon request.
