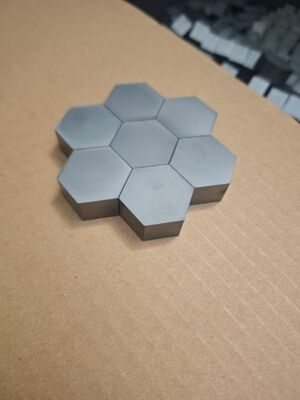

Silicon Carbide Ballistic Tile Kit with 400x400mm Panel Size and Field Replaceable Tiles for NIJ Level III Protection
제품 상세 정보:
| 원래 장소: | 중국 후난성 |
| 브랜드 이름: | High Broad |
| 인증: | ISO 9001:2015, NIJ 0101.06 |
| 모델 번호: | 원문 타일 |
| 문서: | SIC Ballistic Armor Tiles-P...ad.pdf |
결제 및 배송 조건:
| 최소 주문 수량: | 1000개 |
|---|---|
| 가격: | USD 0.1-1/pieces |
| 포장 세부 사항: | 배치 가이드 + 수출용 합판 케이스가 포함된 EPE 폼 트레이에 포장된 키트 |
| 배달 시간: | 재고 보유 기간은 영업일 기준 7~10일, 생산 기간은 20~25일 |
| 지불 조건: | T/T,L/C,웨스턴 유니온 |
| 공급 능력: | 달 당 5000000 킬로그램 |
|
상세 정보 |
|||
| 밀도: | 3.10-3.15g/cm³(타일) | 굴곡강도: | 380-450MPa |
|---|---|---|---|
| 타일 크기: | 400x400mm(조립패널) | 면적 밀도: | ≤36kg/m²(조립) |
| 파괴 인성: | 3.5~4.5MPa·m½ | 두께: | 8.0mm(타일) / 16mm(전체) |
| 강조하다: | SiC Tile Array Kit,Modular Strike Face System,NIJ III Protection Panel |
||
제품 설명
Silicon Carbide Ceramic Ballistic Tile Array Kit NIJ Level III Modular Strike Face Protection 400x400mm Panel Kit
SiC Ballistic Tile Array Kit - Modular Protection System
NIJ Level III | Complete 400x400mm Assembly | Field Replaceable Tiles
- All-In-One Kit
- Field Serviceable
- Template Guided Assembly
Complete Kit, Ready to Assemble
The High Broad is a China tile array kit containing everything needed to build a 400x400mm NIJ Level III strike face panel. Each kit includes: 16 precision-ground 100x100mm SiC tiles, a laser-cut adhesive template, edge-gap spacers, and perimeter sealing components. The modular design means individual damaged tiles can be field-replaced without scrapping the entire panel—dramatically reducing lifecycle costs. For organizations currently using B4C tile kits, switching to our SiC kit typically reduces procurement costs by 40-50% without measurable protection degradation.
Kit Contents
16x SiC Tiles (100x100x8mm), 1x Laser-Cut Adhesive Template, Edge-Gap Spacers, Perimeter Sealing Strip, Assembly Instruction Card, Batch Traceability Certificate.
Lifecycle Cost Advantage
Field-replaceable tiles mean a damaged panel doesn't require complete replacement. Replace only affected tiles at ~$35 each vs scrapping a $500+ B4C monolithic panel—an 85%+ repair cost reduction.
Standardized Interface
The 400x400mm panel dimension is a widely adopted standard for vehicle add-on armor. Kits can be combined side-by-side for larger coverage areas with consistent seam spacing between panels.
Batch Traceability Included
Each kit ships with a unique batch number linking all 16 tiles to their sintering lot, hardness test results, and dimensional inspection report—full material genealogy for quality assurance.
Kit Specifications
| Assembled Panel Size | 400 x 400 mm |
| Tile Count per Kit | 16 (4x4 array) |
| Individual Tile Size | 100 x 100 x 8 mm |
| Tile Material | Pressureless Sintered SiC |
| Inter-Tile Gap | 1.5 ± 0.2 mm |
| Edge Chamfer | 0.3mm x 45° on all tiles |
| Template Material | Laser-Cut Acrylic (Reusable) |
| Kit Weight | ~4.8 kg (tiles only) |
Upgrade to modular SiC tile kits—lower cost, easier maintenance
Email: janehu@hbnewmaterial.com
Custom kit configurations and volume discounts available
Custom kit configurations and volume discounts available
